El conector es adecuado para cables redondos rígidos AWG 23-26.

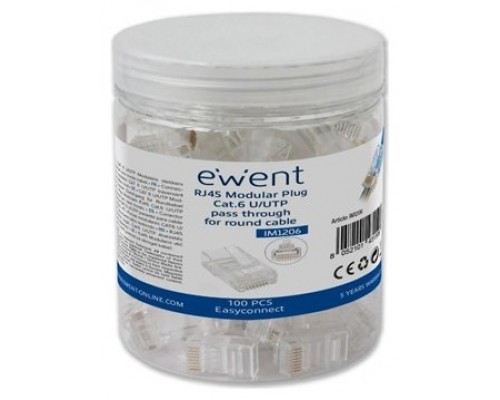

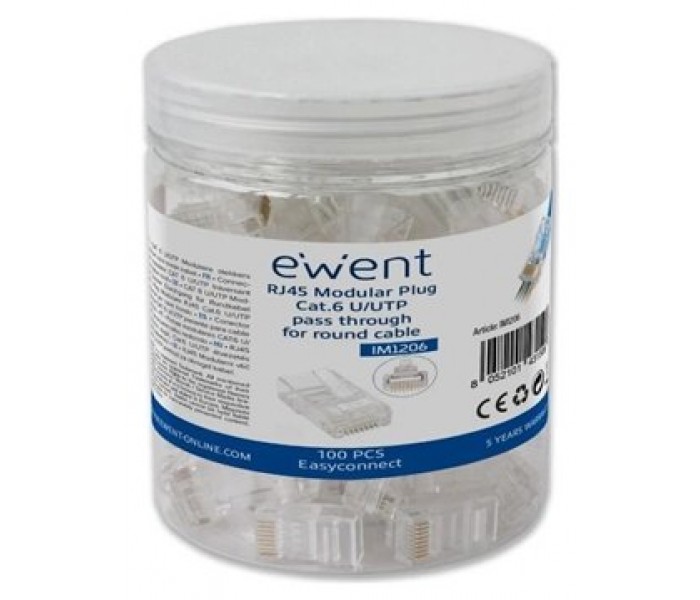

Con el IM1206, simplifique y acelere las terminaciones colocando y cortando todos los cables en un solo movimiento.
Marca | Ewent |
Modelo | IM1206 |
Caracteristicas | - Para cable sólido Cat.6 U/UTP (AWG23-26) - Contactos chapados en oro de 15 µ - Rendimiento: CAT 6, 1GBase-T - Normas: ISO/IEC 11801 3ª Ed., EN 50173-1, EIA/TIA 568-C - Material del cuerpo del conector: Policarbonato, transparente - Contacto del conector: Bronce fosforoso, latón 0,15 μ chapado en oro - Mín. calibre del cable: 26 AWG - Máx. calibre del cable: 23 AWG - Inflamabilidad: UL 94V-2 - Corriente nominal: 2 A - Tensión nominal: 250 V |
Fecha de revisión | 15-02-2023 por RTY |
